Cabluri de energie XLPE / CWS / PVC 45 kV

Producator: ICME ECAB
Cod produs: XLPE / CWS / PVC 45 kV
U.M.: ml
Cantitate:
Produsul Cabluri de energie XLPE / CWS / PVC 45 kV face parte din categoria: Cabluri de inalta tensiune (Cabluri si conductori)

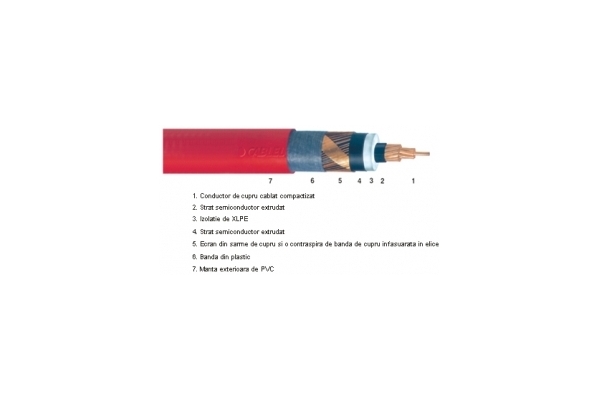

Cabluri cu izolatie exterioara de XLPE, ecranate cu tresa de cupru, izolatie secundara de PVC cu conductori de cupru sau aluminiu.



Tip cablu: XLPE / CWS / PVC
Tensiune nominala: 26 / 45 (Umax: 52 kV)
Standard: IEC 60840
Descriere: Copper or Aluminium conductor, XLPE insulated, copper wire screened and PVC outersheathed. The conductor and screen can be constructed with protection against longitudinal penetration of water. Additionally the cable screen can be constructed with protection against radial penetration of water by use of Al foil bonded to outersheath. The outersheath can also consist of MDPE or HDPE compound.



Fisa tehnica: Cabluri de energie XLPE / CWS / PVC 45 kV (download PDF)
